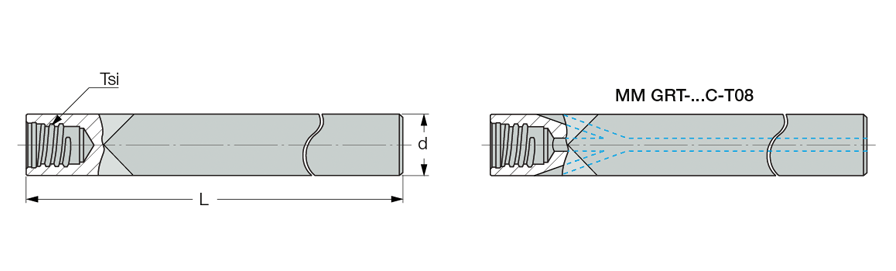

MM GRT (shanks) :  MULTI-MASTER, cylindrical, solid carbide shanks for slitting and grooving Interchangeable milling heads.




  Designation
Tsi
d
L1
L
ShankC-Cylindrical
Coolant
Lbs
  MM GRT-120C-T08  T08  .472  3.071  3.937  C  Y  .273
  MM GRT-127C-T08  T08  .500  3.780  4.724  C  Y  .370

L1=Maximum overhang. Check machining depth limit of endmill head when it has a diameter smaller than the shank diameter.
