ADKT 1505PDTR-8M :  HELIMILL insert with reinforced helical cutting edges, for interrupted cut and heavy milling. Use for long overhang and extended flute cutters with reduced chatter.


Slanted shoulder. & chamfer. Facing Shouldering Slotting Side slotting Plunging & recessing Bottom Shouldering Counter boring Drill mill
Ramp down

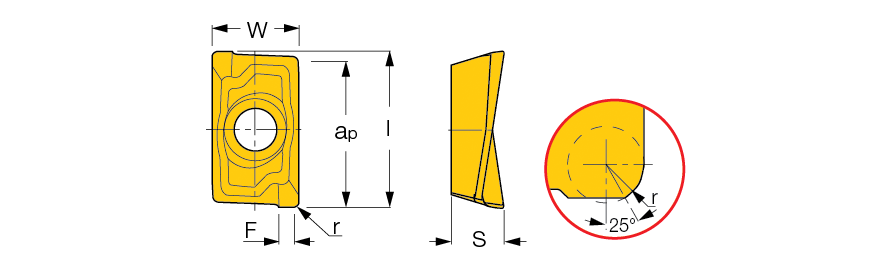

  Designation
W
l
S
ap
F		 fz
(min)		 fz
(max)
  Grade
  ADKT 1505PDTR-8M  9.57  15.65  5.64  13.75  1.60  0.08  0.15 IC635 IC250 IC520M
