ISCAR Cutting Tools - Metal Working Tools

Click on the application to view only its related inserts.
(If no application has been selected all related inserts will be displayed)

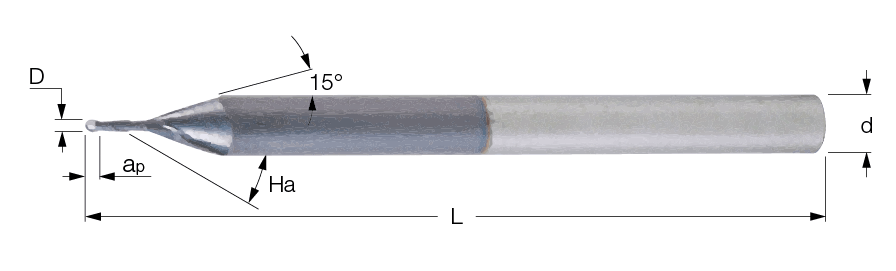

EBM-A-2 : 2 flute, 30° helix medium length solid carbide miniature ball nose endmills.

Designation	D	r	d	ap	L	Flute	Ha°	Shank	Grade
EBM010A025-2C04	1.00	0.50	4.00	2.50	50.00	2	30.0	C	IC08 IC900
EBM011A025-2C04	1.10	0.55	4.00	2.50	50.00	2	30.0	C	IC08
EBM012A030-2C04	1.20	0.60	4.00	3.00	50.00	2	30.0	C	IC08 IC900
EBM016A040-2C04	1.60	0.80	4.00	4.00	50.00	2	30.0	C	IC08 IC900
EBM020A060-2C04	2.00	1.00	4.00	6.00	50.00	2	30.0	C	IC08 IC900

Short and stable design for profiling (roughing)
