QNMG-NF :  Double-sided inserts with four 80° corners for semi-finishing and finishing. Low cutting forces due to very sharp edgeand positive rake.


Ext. 80° Q#MG 95° approach Ext. 80° Q#MG 95°approach face Ext. 90°square face&turn 45°ap Int. 80° Q#MG 95° approach Int. 80° Q#MG 95°approach face

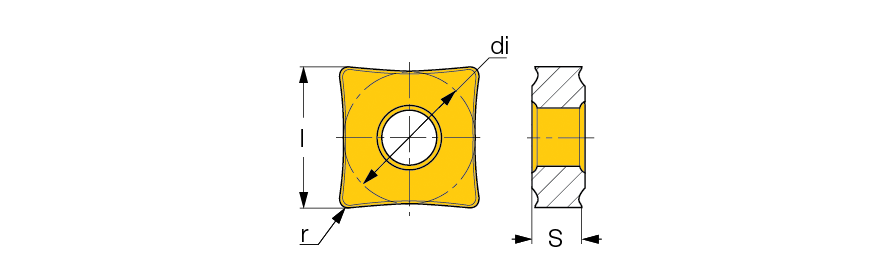

  Designation
l
di
S
r		 ft
(min)		 ft
(max)		 ap
(min)		 ap
(max)
  Grade
  QNMG 120408-NF  13.33  12.70  4.76  0.80  0.08  0.25  0.80  3.00 IC8150

For dimensions and tolerances, see more info.
