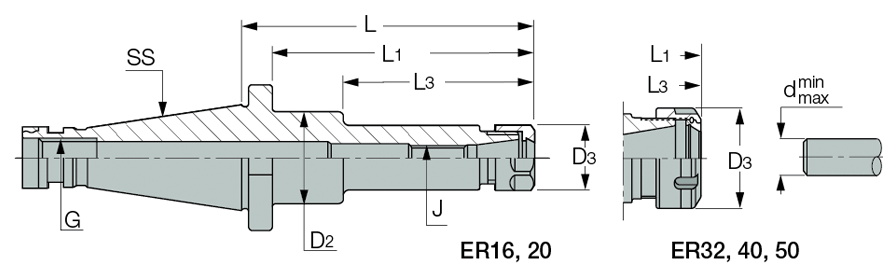

DIN2080-ER :  DIN 6499 ER collet chucks with DIN 2080 AD tapered shanks.


RUNOUT (INT) 0.003MM(.00012 TAPER HARDNESS 58-60 SURFACE FINISH N5
  Designation
SS
CSI		 d
min		 d
max
L
L1
L3
D3
D2
J
G
Kg
  DIN2080 40 ER25X 50  40  ER25  1.0  16.0  50.00  38.4  -  42.00  -  M16X1.5  M16  0.82
