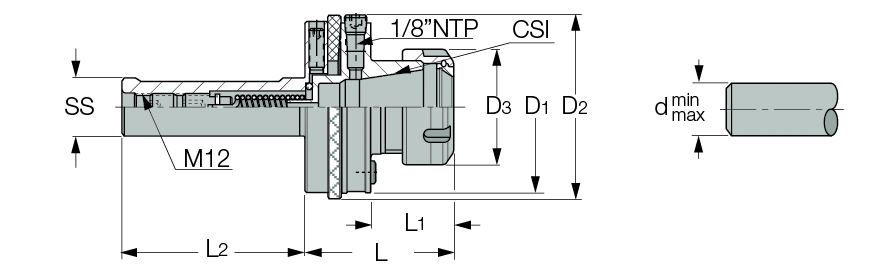

| Designation |
SS |
CSI |
d
min |
d
max |
D3 |
D1 |
D2 |
L1 |
L |
L2 |
Kg |
|
GYRO ST20 ER25
|
20 |
ER25 |
1.0 |
16.0 |
34.00 |
57.0 |
63.00 |
28.5 |
58.80 |
80.00 |
1.20 |
|
GYRO ST25 ER25
|
25 |
ER25 |
1.0 |
16.0 |
42.00 |
74.0 |
79.00 |
35.5 |
65.65 |
80.00 |
1.31 |
|
For adaptation Click on "More Info".
Radial adjustment 2.0 mm. Angular adjustment 1°.
First-time users should buy a GYRO kit which includes a test bar and a bushing for performing the alignment procedure.
|
 |
    |
