| PS SK-DIN (pull stud) : SK Pull Stud with DIN 69872 Retention Knob |
|
|
|
|
|
| Designation |
SS |
G |
D1 |
D2 |
D3 |
d5 |
L |
L1 |
L2 |
a° |
Fig. |
|
PS SK30 15 M12 DIN
|
30 |
M12 |
13.0 |
9.00 |
13.00 |
- |
19.00 |
44.0 |
24.00 |
15 |
1 |
|
Coolant holes only in items with a B suffix

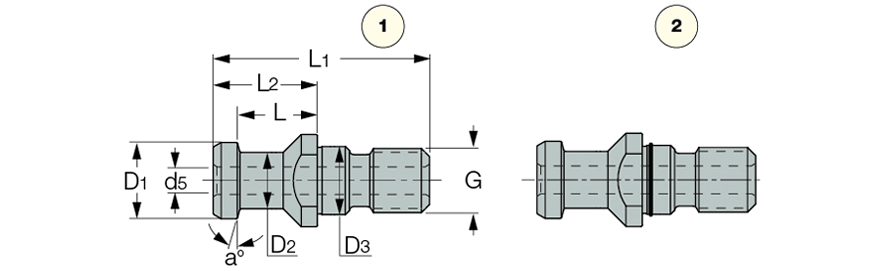

Fig 1: Without or with coolant holes
Fig 2: Without or with coolant holes and external O-ring
|
 |
    |
