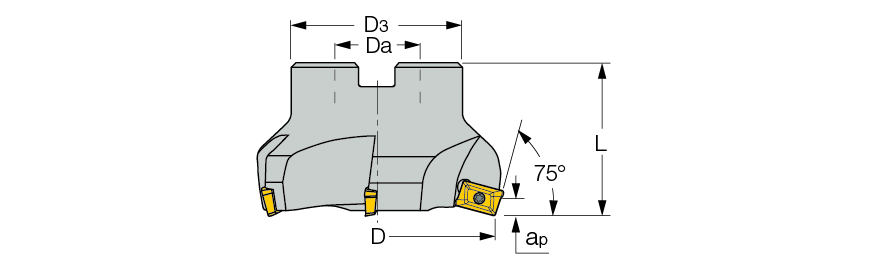

F75AP :  HELIMILL, 75° face mills with AP..-1003... inserts.


Facing Slanted shoulder. & chamfer.
  Designation
D
Z
ap
L
Da
ArborFor adaptation click on More Info
Kg
  F75AP D50-22  50.00  5  4.00  40.00  22.00  A  0.28
  F75AP D63-22  63.00  6  4.00  40.00  22.00  A  0.48
  F75AP D80-27  80.00  7  4.00  50.00  27.00  B  0.81
