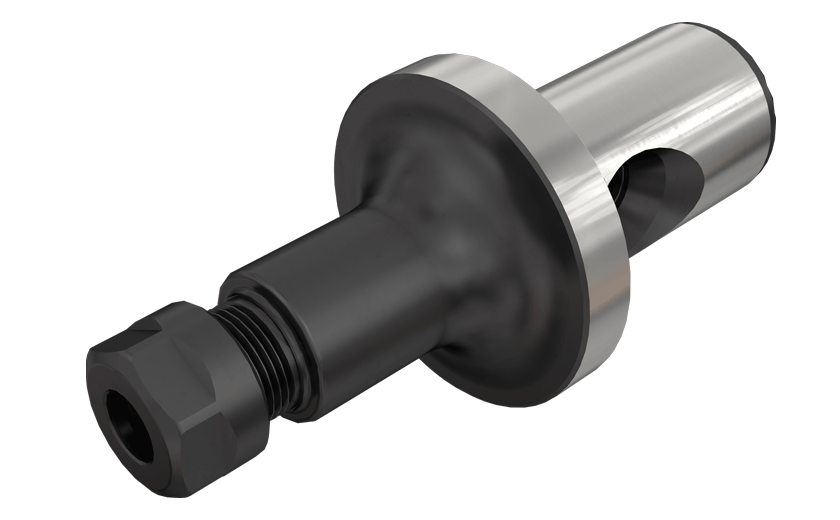

| ER-CF (CLICKFIT) : DIN 6499 ER collet chucks with CLICKFIT quick change adaptations. |
|
|
|
|
|

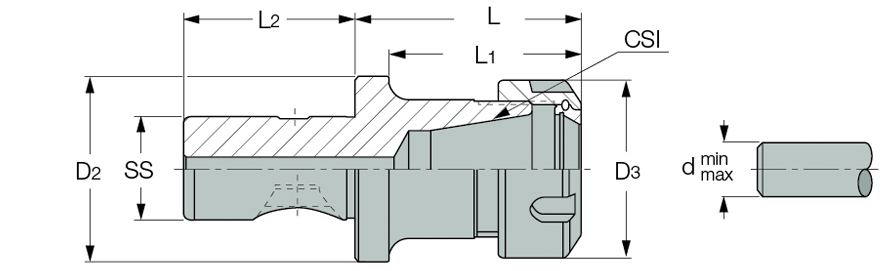

| Designation |
CSI |
SS |
d
min |
d
max |
L |
L1 |
L2 |
D3 |
D2 |
Kg |
|
ER32 CF4-L
|
ER32 |
CF4 |
2.0 |
20.0 |
100.00 |
92.0 |
42.00 |
50.00 |
44.00 |
0.77 |
|
ER32 CF4-S
|
ER32 |
CF4 |
2.0 |
20.0 |
55.00 |
47.0 |
42.00 |
50.00 |
44.00 |
0.40 |
|
Tightening torque: 6 Kgxm.
For adaptation click on "More Info"
|
 |
    |
