ADKT 1505PDR/L-HM :  HELIMILL inserts with 2 helical cutting edges, for general use.


Bottom Shouldering Counter boring Countersinking Drill mill Facing Plunging & recessing Ramp down Shouldering Side slotting
Slanted shoulder. & chamfer. Slotting

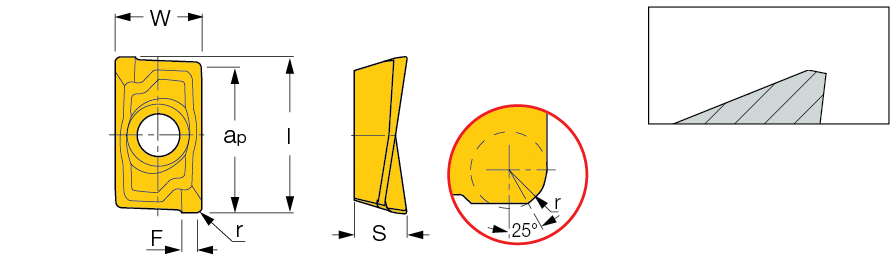

  Designation
W
l
ap
S
r
F		 fz
(min)		 fz
(max)
  Grade
  ADKT 1505PDR-HM  9.57  15.65  13.75  5.64  0.80  1.60  0.08  0.15 IC4010 IC28 IC328 IC528 IC928 IC635 IC50M IC250 IC950 IC5400 IC4050 IC908 IC30N IC910 IC520M IC20
  ADKT 1505PDL-HM  9.57  15.70  13.80  5.64  0.80  1.60  0.08  0.15 IC328 IC635 IC250 IC520M
