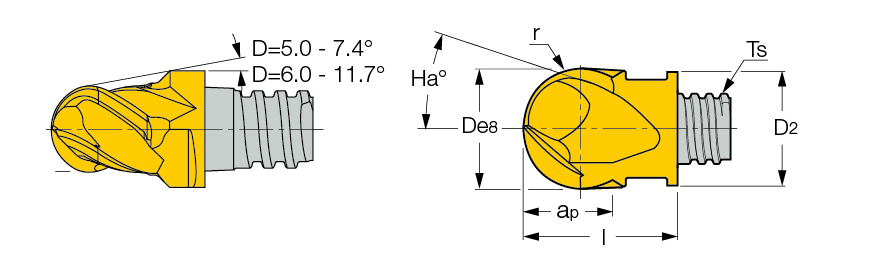

MM EB :  MULTI-MASTER interchangeable solid carbide ball nose milling heads.


Profiling
  Designation
D
Flute
ap
r
Ts
D2
l
Ha°
  Grade
  MM EB050E07-4T05  5.00  4  7.00  2.49  T05  8.00  15.00  38.0 IC908
  MM EB060E05-4T05  6.00  4  5.00  2.99  T05  8.00  10.00  38.0 IC908
  MM EB080A05-2T05  8.00  2  5.00  3.98  T05  7.70  10.00  30.0 IC908
  MM EB080A05-4T05  8.00  4  5.00  3.98  T05  7.70  10.00  30.0 IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
