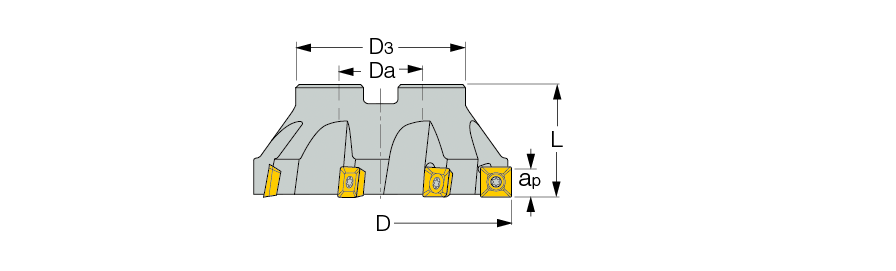

F90SP-10 :  HELIQUAD, 90° face mills with S/X/QPMT 1004... inserts.


Facing Shouldering Slotting Ramp down
  Designation
DD is 0.2 mm larger when QPMT inserts are used.
Z
ap
L
Da
Rd°
ArborFor adaptation click on More Info
Kg
D3
  F90SP D 40-16-10  40.00  4  9.50  40.00  16.00  -  A  0.17  35.00
  F90SP D 50-22-CP10  50.00  4  9.50  40.00  22.00  2.0  A  0.41  42.50
  F90SP D 50-22-FP10  50.00  6  9.50  40.00  22.00  2.0  A  0.26  42.50
  F90SP D 63-22-CP10  63.00  5  9.50  40.00  22.00  0.8  A  0.39  42.50
  F90SP D 63-22-FP10  63.00  7  9.50  40.00  22.00  0.8  A  0.42  42.50
  F90SP D 63-CP10....J  63.00  5  9.50  40.00  25.40  0.8  B  0.38  50.00
  F90SP D 80-27-CP10  80.00  5  9.50  50.00  27.00  1.3  B  0.71  55.00
  F90SP D 80-27-FP10  80.00  9  9.50  50.00  27.00  1.3  B  0.77  55.00
  F90SP D 80-CP10...J  80.00  5  9.50  50.00  25.40  1.3  B  0.76  55.00
  F90SP D 80-FP10....J  80.00  9  9.50  50.00  25.40  1.3  B  0.82  55.00
  F90SP D100-32-CP10  100.00  7  9.50  50.00  32.00  0.8  B  1.34  68.00
  F90SP D100-32-FP10  100.00  11  9.50  50.00  32.00  0.8  B  1.38  68.00
  F90SP D100-FP10....J  100.00  11  9.50  50.00  31.75  0.8  B  1.36  68.00
