3M F45AX-20 :  MILL2000, Heavy duty 45° face mills using 3M AXKT 2006... inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications.


Facing Slanted shoulder. & chamfer.

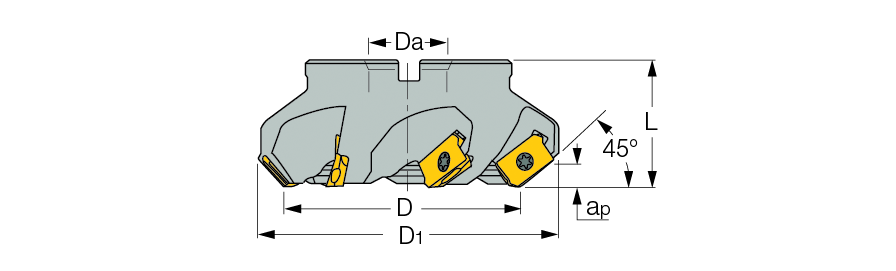

  Designation
D
D1
ap
Z
L
Da
ArborFor adaptation click on More Info
Kg
  3M F45AX D063-4-22-20  63.00  85.0  10.00  4  40.00  22.00  B  0.76
  3M F45AX D080-5-27-20  80.00  101.0  10.00  5  50.00  27.00  B  1.20
  3M F45AX D100-6-32-20  100.00  121.0  10.00  6  50.00  32.00  B  1.85
  3M F45AX D125-8-40-20  125.00  145.0  10.00  8  63.00  40.00  B  2.93
  3M F45AX D160-9-40-20  160.00  180.0  10.00  9  63.00  40.00  C  4.51
