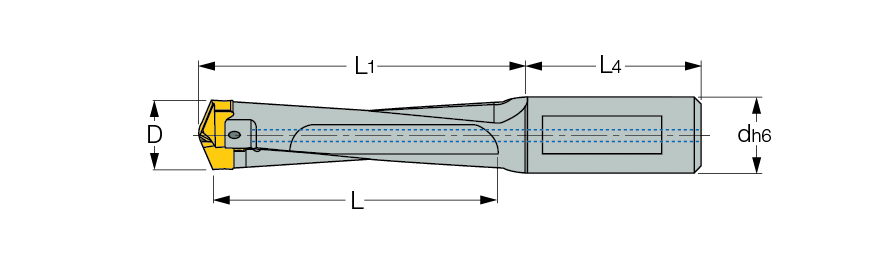

DCM-3.5D (7.5-20.9 mm) :  UNICHAMDRILL indexable head drills without a flange and one flat shank type. 3.5xD drilling depth.


Drilling COOLANT
  Designation D
minDo not mount smaller drilling heads than specified range for drill body.		 D
max
L
d
L1
L4		 Po.
Size
  DCM 095-033-10B-3.5D  9.50  9.90  33.0  10.00  40.3  43.0  9.0
  DCM 100-033-10B-3.5D  10.00  10.40  33.0  10.00  43.0  43.0  10.0

Drill tolerance: k7
