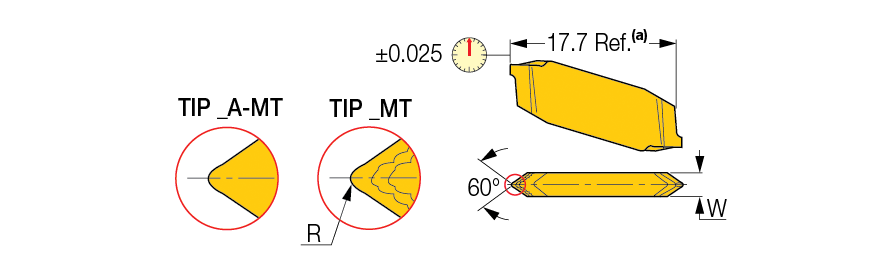

TIP-MT :  Precision ground 60° partial profile, double-ended threading inserts. TIP-MT - with a chipformer, TIP A-MT -without chipformer for short chipping materials.


Threading (Ext.) Threading (Int.)
  Designation
W
R±0.03
Pmin		 TPI
max
  Grade
  TIP 5MT-0.25  5.50  0.25  1.94  13 IC08 IC908

(a) TIP inserts are 1.6 mm longer than GIP in the same pocket.
Toolholder seat needs to be modified according to insert profile to ensure clearance.
