PH-A :  High productivity center cutting plungers with spiral flutes carrying PLHT 1305-PDX inserts.


Counter boring Drill mill Plunging & recessing Side plunging COOLANT

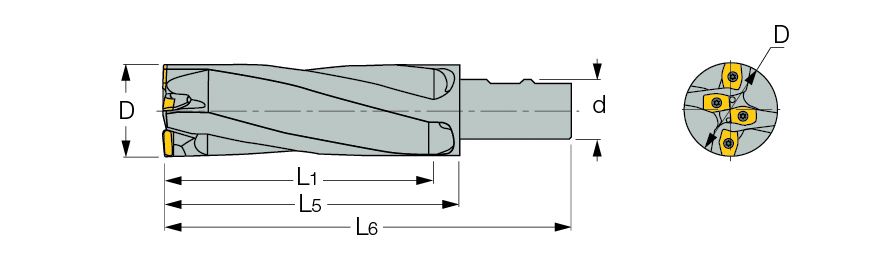

  Designation
D
L1
L5
L6
Zeff
Z
d
ShankW-Weldon
Kg
  PH D63-H140-A-W40-13  63.00  140.0  160.00  230.00  2  6  40.00  W  2.40

For adaptation, click on "More Info".
