MM ETR :  MULTI-MASTER Torodial 6 flute interchangeable solid carbide milling heads


Profiling Ramp down Helical interpolation Slotting Drill mill

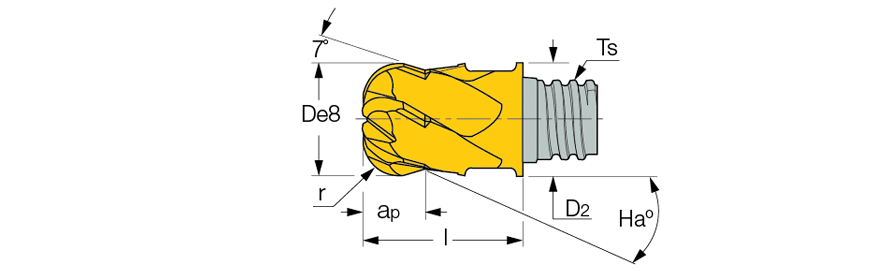

  Designation
D
Z
ap
r
Ts
D2
l
Ha°
Rd°
  Grade
  MM ETR100A05R3.0-6T06  10.00  6  7.00  3.00  T06  9.60  13.00  30.0  9.0 IC908

For clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
