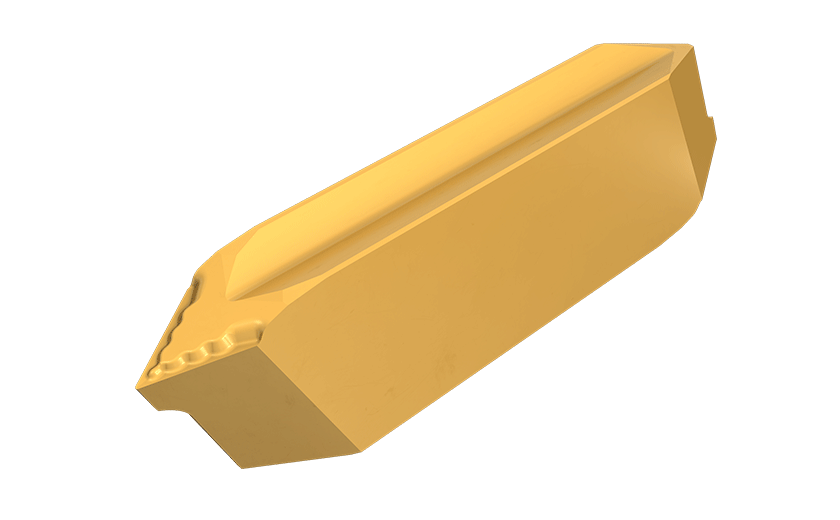

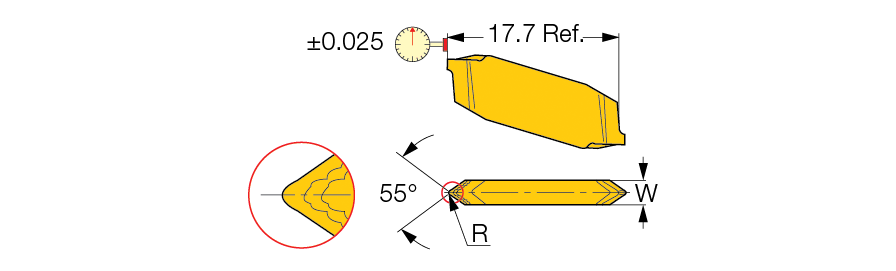

TIP-WT :  Precision ground 55° partial profile, double-ended threading inserts with a chipformer.
 TIP inserts are 1.6 mm longer than GIP in the same pocket

Threading (Ext.) Threading (Int.)
  Designation
W
R±0.03		 TPI
max		 TPI
minD-Diameter of thread
  Grade
  TIP 5WT-0.25  5.50  0.25  12  6.4/D IC908

Toolholder seat needs to be modified according to insert profile to ensure clearance.
