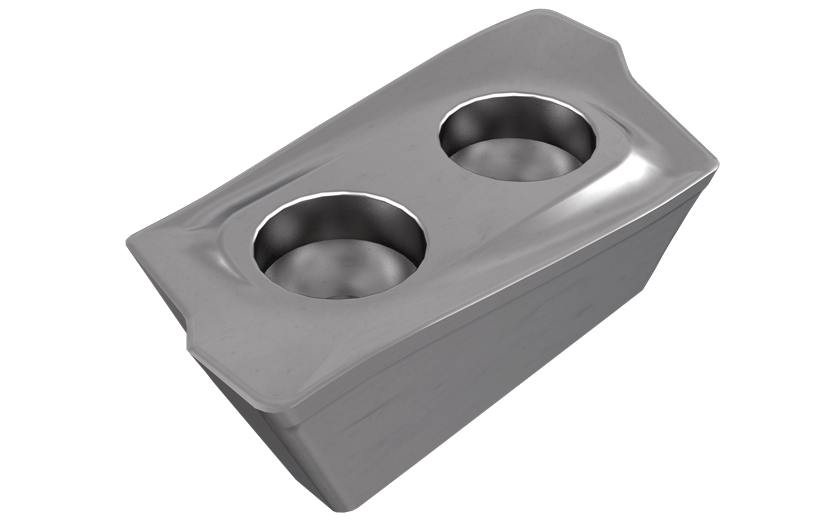

HP ADKT/ADCT 2207 :  HELIPLUS inserts with two 22 mm long cutting edges for general high shoulder milling.


Counter boring Facing Helical interpolation Ramp down Shouldering Slotting

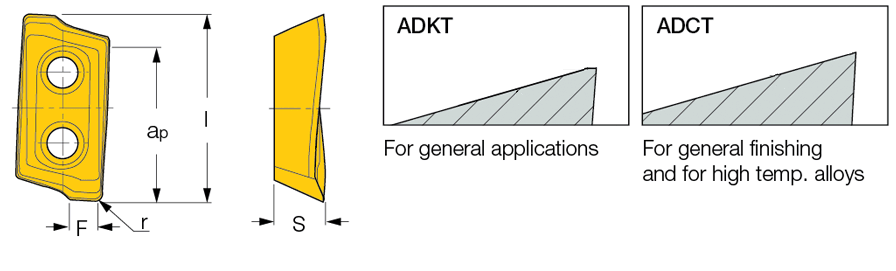

  Designation
l
ap
S
r
F		 fz
(min)		 fz
(max)
  Grade
  HP ADCT 2207PDR  25.73  22.60  7.50  1.00  3.43  0.07  0.15 IC328 IC928 IC908
  HP ADKT 2207PDTR  25.73  22.60  7.50  0.80  3.43  0.10  0.20 IC328 IC928 IC950 IC908 IC910
