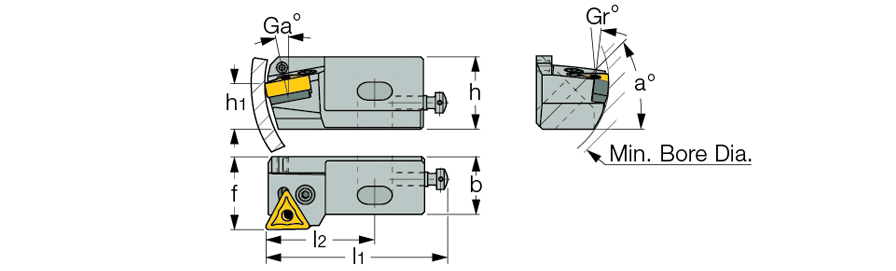

PTGNR/L-CA :
91° lead angle lever lock cartridge tools for negative triangular inserts.
Right-hand shown
Designation
h
h1
b
l1
l2
f
D
min
Ga°
Gr°
a°
R/L
PTGNL 16CA-16
25.0
16.0
20.0
63.00
38.0
25.0
60.00
-10
-6
45
L
PTGNR 16CA-16
25.0
16.0
20.0
63.00
38.0
25.0
60.00
-10
-6
45
R
