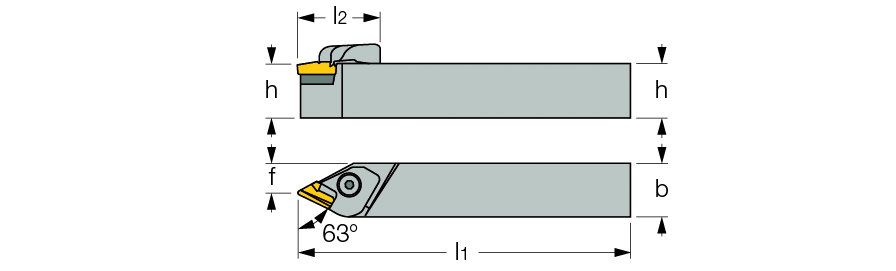

CKNNR/L :  Top clamp toolholders with 75° lead angle for 55° negative parallelogram inserts.
 Right-hand shown

Ext. 55° diamond 62.5° approac
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  CKNNL 2525M-16  25.0  25.0  150.00  33.0  14.4  2.5  5.2  L
  CKNNR 2525M-16  25.0  25.0  150.00  33.0  14.4  2.5  5.2  R
