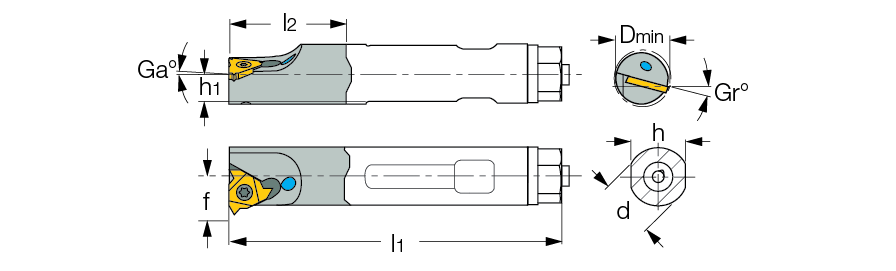

E-SIR-HEAD :  Interchangeable threading heads, used on carbide bars.
 Right-hand shown

Internal threading COOLANT
  Designation
d
l1
l2
h
h1
f
Ga°
Gr°		 D
min
R/L
  E12 SIR-11 HEAD  12.00  179.00  24.8  11.0  5.5  8.3  1.5  -15  14.90  R

Used on carbide shanks
