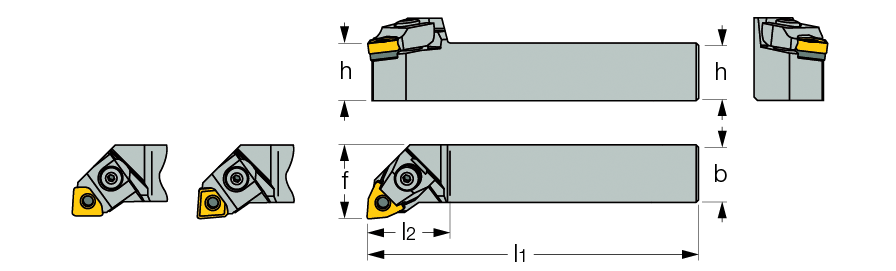

MULNR/L-12MW :  MULTI-WEDGE lock external toolholders for 80° negative rhombic, trigon and square inserts.
 Right-hand shown

Ext. 80° diamond 95° approach Ext. 80° trigon 95 approach Ext. 90° square 75° approach
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  MULNL 2525M-12MW  25.0  25.0  150.00  35.0  32.0  6  6  L
  MULNR 2525M-12MW  25.0  25.0  150.00  35.0  32.0  6  6  R

Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately.
RH wedge for RH tool.
LH wedge for LH tool.
For other wedges see more info.
