SDN-CALN12 :  Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LNET 12... inserts. Narrow slitting, saves workpiece material and provides excellent surface quality, (e.g. for bearing caps).


Bottom Shouldering Shouldering Side slotting Slotting

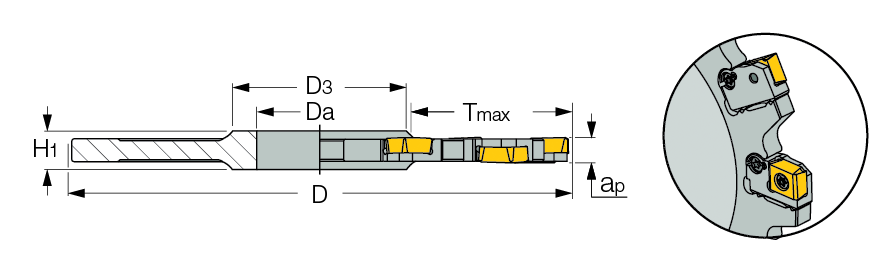

  Designation
D
Z
Zeff
Da
D3
Tmax		 ap
min		 ap
max
H1
Kg
  SDN D250-0810-60-CALN12  250.00  20  10  60.00  84.00  80.00  8.00  10.50  14.0  2.09

For width assembly options, click on More Info.
