HP ANCR 0702PNFR :  HELIPLUS, Inserts with a super positive chipformer, peripherally ground for machining aluminum, titanium and magnesium (P - polished rake).


Counter boring Facing Ramp down Shouldering Slotting

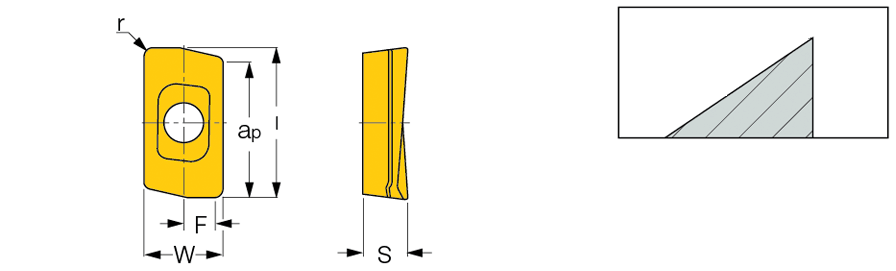

  Designation
l
ap
S
r
F
W		 fz
(min)		 fz
(max)
  Grade
  HP ANCR 070204PNFR  8.70  7.70  2.60  0.40  1.20  4.50  0.07  0.20 IC328 IC928 IC908
  HP ANCR 070204PNFR-P  8.70  7.70  2.60  0.40  1.20  4.50  0.07  0.20 IC28
