RCMT/RCMW/RCCW-FW :  MILLSHRED, fully effective, serrated inserts with four indexing orientation options. Produces small chips for easy evacuation, even from deep cavities. Small cutting forces - therefore the required machining power is low.


Facing Plunging & recessing Profiling Ramp down Shouldering Slotting

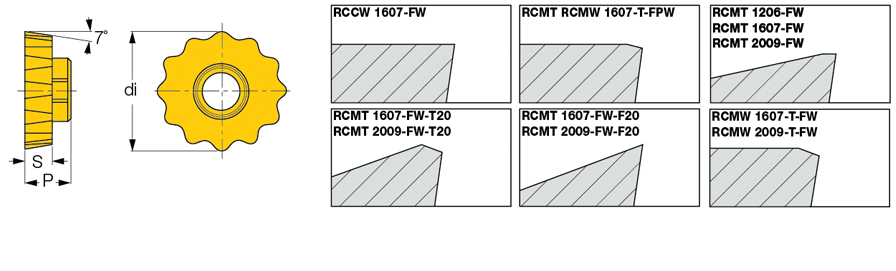

  Designation
di
S
P		 fz
(min)		 fz
(max)
  Grade
  RCMT 1004-FW  10.00  3.20  4.80  0.15  0.30 IC830
  RCMT 1004-FW-F20  10.00  3.20  4.80  0.15  0.30 IC830
  RCMT 1206-FW  12.00  4.00  6.40  0.20  0.35 IC928
  RCMT 1206-FW-F20  12.00  4.00  6.40  0.20  0.35 IC928 IC908
  RCMT 1206-FW-T20  12.00  4.00  6.40  0.20  0.35 IC928
  RCCW 1607-FW  16.00  5.00  7.90  0.20  0.35 IC908
  RCMT 1607-FW  16.00  5.00  7.90  0.20  0.35 IC830 IC928 IC808 IC908
  RCMT 1607-FW-F20  16.00  5.00  7.90  0.20  0.35 IC928 IC908
  RCMT 1607-FW-T20  16.00  5.00  7.90  0.20  0.35 IC928 IC908
  RCMW 1607-T-FPW  16.00  5.00  7.90  0.20  0.35 IC908
  RCMW 1607-T-FW  16.00  5.00  7.90  0.20  0.35 IC928 IC908 IC910
  RCMT 2009-FW  20.00  6.00  9.40  0.20  0.35 IC928 IC908
  RCMT 2009-FW-F20  20.00  6.00  9.40  0.20  0.35 IC928
  RCMT 2009-FW-T20  20.00  6.00  9.40  0.20  0.35 IC928
  RCMW 2009-T-FW  20.00  6.00  9.40  0.20  0.35 IC928 IC908

For chipformer details click on "More Info".
