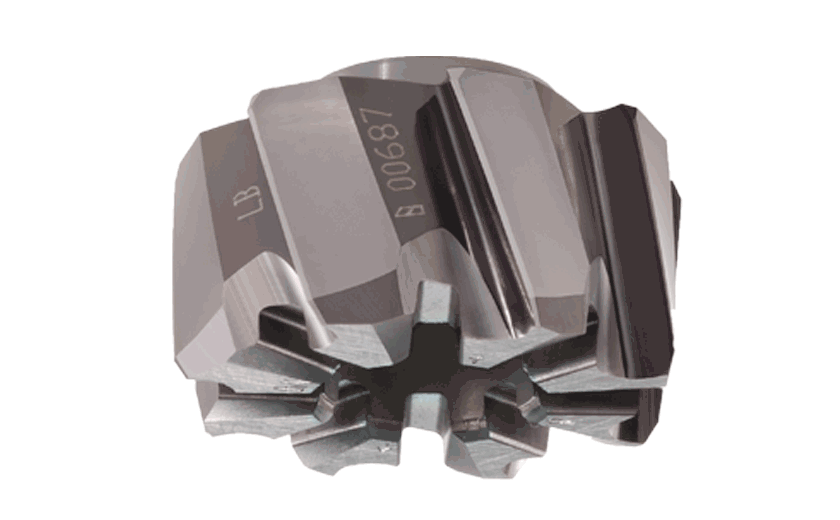

RM-BN-H7LB :  BAYO T-REAM interchangeable left-hand solid carbide reaming heads with a quick change bayonet mechanism for H7 hole tolerance high speed reaming of through holes.


Stacked plates Through & axial groove Through & perpendicular holes Through & radial groove Through hole

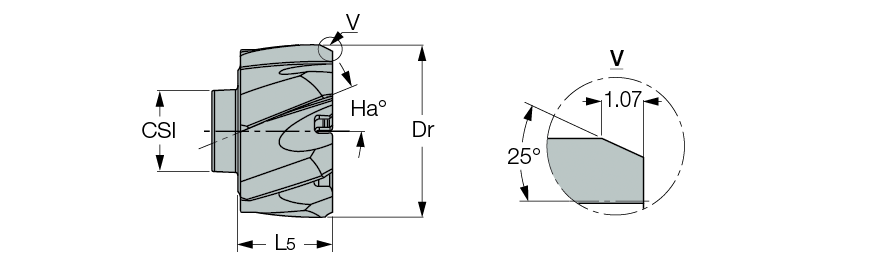

  Designation
CSI
Dr
S
Flute
R/L
Ha°
IIC
  Grade
  RM-BN8-20.001-H7LB  BN8  20.001  12.60  8  L  20.0  - IC08 IC908
  RM-BN8-21.000-H7LB  BN8  21.000  12.60  8  L  20.0  - IC08 IC908
  RM-BN8-22.000-H7LB  BN8  22.000  12.60  8  L  20.0  - IC08 IC908
  RM-BN8-23.000-H7LB  BN8  23.000  12.60  8  L  20.0  - IC08 IC908
  RM-BN8-24.000-H7LB  BN8  24.000  12.60  8  L  20.0  - IC08 IC908
  RM-BN8-25.000-H7LB  BN8  25.000  12.60  8  L  20.0  - IC08 IC908

For user guide click on "More Info"
