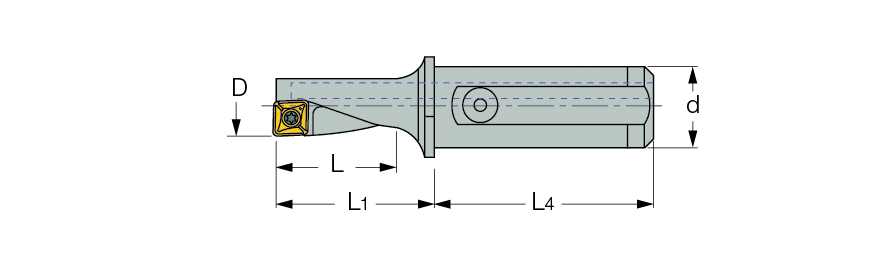

DR-MF-2.25D :
Multifunction drilling, boring, facing and external turning tool.
Right-hand shown
Designation
D
d
L
L1
L4
R/L
DR-MF-08L-2.25D-12A-04
8.00
12.00
18.0
22.0
38.0
L
DR-MF-08R-2.25D-12A-04
8.00
12.00
18.0
22.0
38.0
R
DR-MF-10L-2.25D-12A-05
10.00
12.00
22.5
27.5
42.0
L
DR-MF-10R-2.25D-12A-05
10.00
12.00
22.5
27.5
42.0
R
DR-MF-12L-2.25D-16A-06
12.00
16.00
27.0
33.0
45.0
L
DR-MF-12R-2.25D-16A-06
12.00
16.00
27.0
33.0
45.0
R
DR-MF-14L-2.25D-16A-07
14.00
16.00
31.5
38.5
45.0
L
DR-MF-14R-2.25D-16A-07
14.00
16.00
31.5
38.5
45.0
R
DR-MF-16L-2.25D-20A-08
16.00
20.00
36.0
44.0
50.0
L
DR-MF-16R-2.25D-20A-08
16.00
20.00
36.0
44.0
50.0
R
DR-MF-20L-2.25D-25A-10
20.00
25.00
45.0
55.0
56.0
L
DR-MF-20R-2.25D-25A-10
20.00
25.00
45.0
55.0
56.0
R
DR-MF-25L-2.25D-32A-13
25.00
32.00
56.5
69.0
61.0
L
DR-MF-25R-2.25D-32A-13
25.00
32.00
56.5
69.0
61.0
R
DR-MF-32L-2.25D-40A-17
32.00
40.00
72.0
86.0
74.0
L
DR-MF-32R-2.25D-40A-17
32.00
40.00
72.0
86.0
74.0
R
In non-rotating applications hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis.
The tools have an internal coolant hole.
