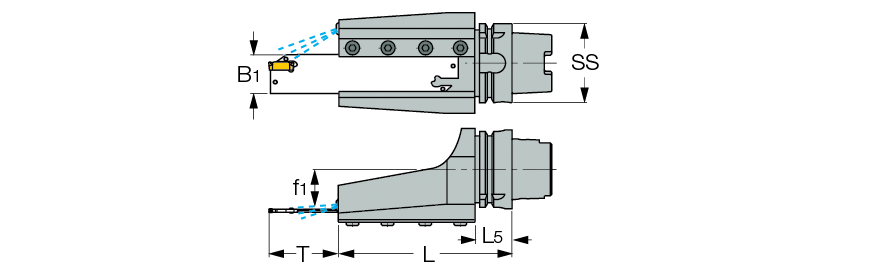

HSK A-WH-TBK-R/L :  Blocks with HSK exchangeable tapered shanks for parting and grooving blades.
 T= See specific blade dimensions
Right-hand shown
 Left-hand shown
TBK-32R/L COOLANT
  Designation
SS
L
f1
B1Blade size B1, has to fit this dimension.
R/L
  HSK A63WH-TBK-32L  63  138.00  32.0  32.0  L
  HSK A63WH-TBK-32R  63  138.00  32.0  32.0  R
  HSK A100WH-TBK-32L  100  150.00  50.0  32.0  L
  HSK A100WH-TBK-52L  100  168.00  25.0  52.0  L

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
Complies with the ICTM and HSK-T standards.
