ENHT :  Toroidal bull nose, peripherally ground inserts with 4 cutting edges. Used for undercutting and for finish profiling on steep and poorly supported surfaces (TORMILL).


Plunging & recessing Profiling Ramp down Shouldering Side plunging Undercutting

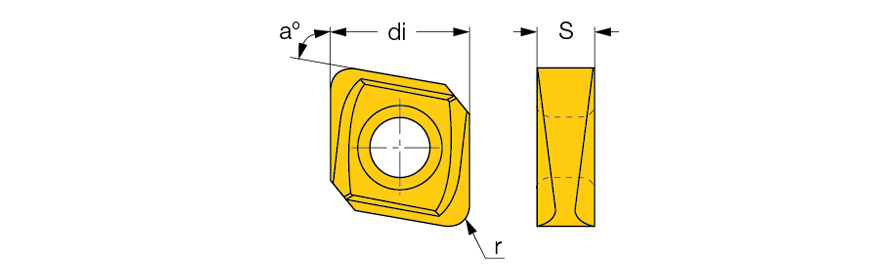

  Designation
di
r
S
a°		 fz
(min)		 fz
(max)
  Grade
  ENHT 100408  10.50  0.80  4.20  75  0.10  0.25 IC908
  ENHT 100410  10.50  1.00  4.20  75  0.10  0.25 IC908
  ENHT 100415  10.50  1.50  4.20  75  0.10  0.25 IC908
  ENHT 100420  10.50  2.00  4.20  75  0.10  0.25 IC908
  ENHT 100425  10.50  2.50  4.20  75  0.10  0.25 IC908
  ENHT 100430  10.50  3.00  4.20  75  0.10  0.25 IC908
