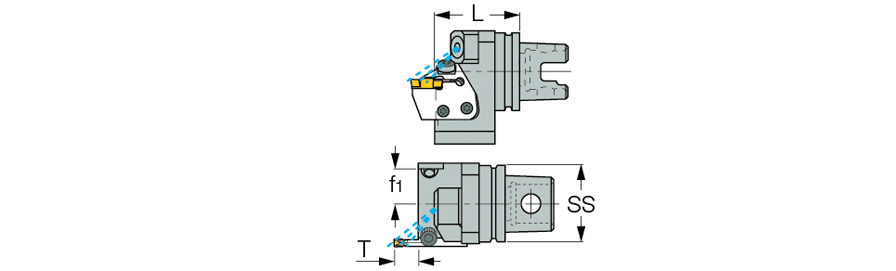

IM-MAHD :  Holders for MODULAR-GRIP parting, grooving, turning and facing adapters with ISO 26622-1(*) tapered shank.
 T= See specific adapter dimensions
Right-h and shown

COOLANT
  Designation
SS
L
f1
  IM40 MAHD  40  43.00  18.0
  IM50 MAHD  50  47.00  23.0
  IM63 MAHD  63  47.00  29.0

(*) Tools with orientation holes in the flange groove can be supplied on request
