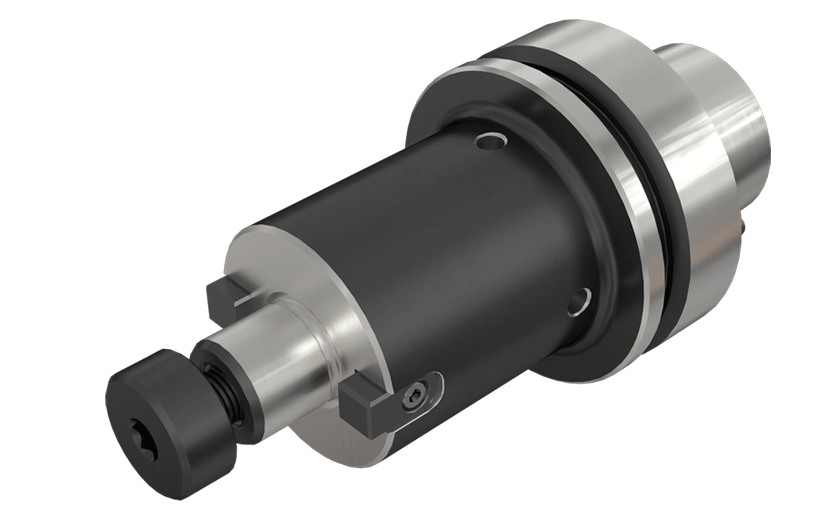

HSK FM-SEM :  Shellmill adapter with HSK high torque features. Used for MAKINO'S machine models MAG3, MAG4, and V77. These tools are based on the HSK63F type with two drive pins which improve torque transmission.


SURFACE FINISH N5 RUNOUT (EXT) 0.005MM (.0002 HARDNESS 58-60 G2.5/33000 RPM COOLANT

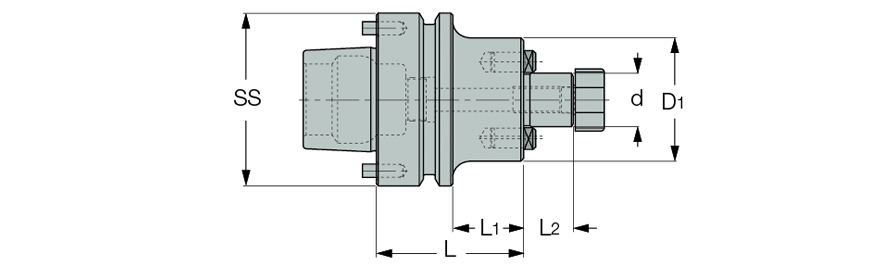

  Designation
SS
d
L
D1
L1
L2
Lbs
  HSK FM63 SEM 3/4X3.00  63  .750  3.000  1.772  1.976  .669  2.844
  HSK FM63 SEM 3/4X4.50  63  .750  4.500  1.772  3.476  .669  3.881
  HSK FM63 SEM 1X2.375  63  1.000  2.375  2.079  1.351  .669  2.800

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).The driving pins can be removed, turning the toolholder into a standard HSK F63 type.
Balanced to G2.5/33,000 RPM.
ISCAR can not guarantee an unbalance value less than 1 gr x mm.
