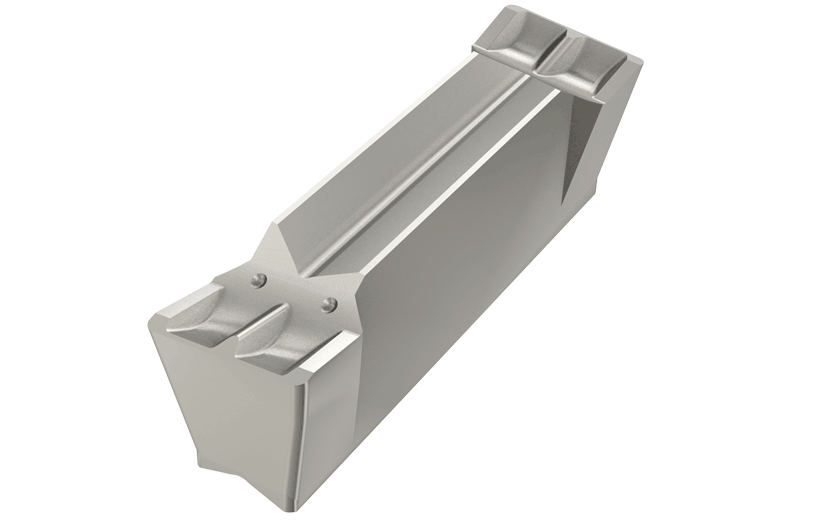

 DGN-W :  Parting & grooving double-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Used on hard materials and interrupted cuts.


Parting Ext. Grooving Face Grooving Face Grving Along Shaft Int. Face Grooving
  Designation
W±0.04
R		 l
Ref.		 fg
(min)		 fg
(max)
  Grade
  DGN 5003W  5.00  0.30  19.0  0.12  0.33 IC328 IC354

No depth limit
