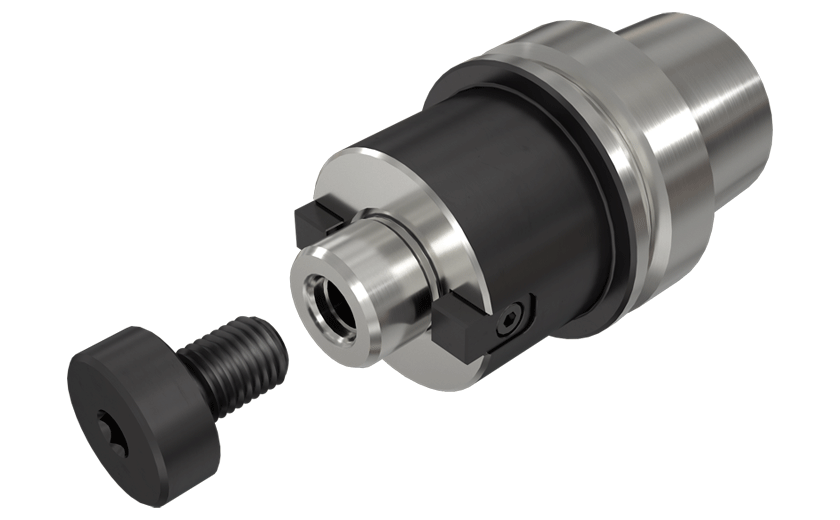

HSK E-SEM :  ISO 3937 shell mill holders with HSK E DIN69893 form E tapered shanks.


SURFACE FINISH N5 RUNOUT (EXT) 0.005MM (.0002 HARDNESS 58-60 G2.5/15000 RPM COOLANT

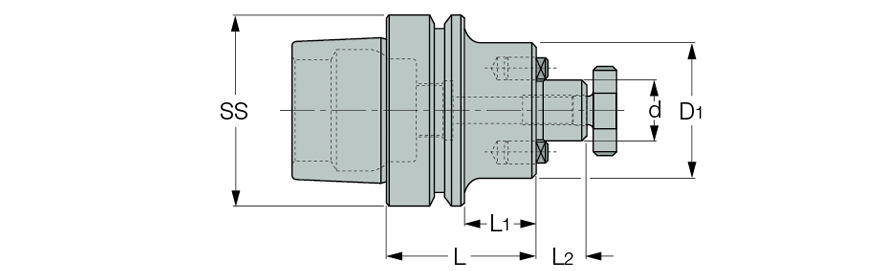

  Designation
SS
d
D1
L
L1
L2
Lbs
  HSK E 32 SEM 3/4X2  32  .750  1.752  2.000  1.213  .669  .838
  HSK E 40 SEM 3/4X2.000  40  .750  1.771  2.000  1.213  .669  1.147
  HSK E 50 SEM 3/4X2.375  50  .750  1.764  2.375  1.350  .669  1.808
  HSK E 63 SEM 3/4X2.375  63  .750  1.771  2.375  1.351  .669  2.448
  HSK E 63 SEM 1 X2.375  63  1.000  2.079  2.375  1.351  .669  2.844

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
