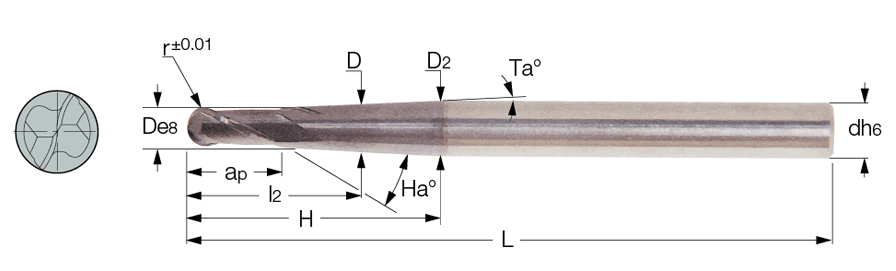

EB-A2 (tapered flute & neck) : 2 flute, 30° helix tapered flute and neck, solid carbide ball nose endmills. Used for materials up to 65 HRc.

Hard Materials

Designation	D	r	d	ap	l2	H	D2	Ta°	L	Flute	Ha°	Shank	Grade
EB-A2 12-22/25/1.5C16M160	12.00	6.00	16.00	22.00	25.0	83.00	15.00	1.5	160.00	2	30.0	C	IC903
EB-A2 12-22/25/3.0C16M140	12.00	6.00	16.00	22.00	25.0	63.00	16.00	3.0	140.00	2	30.0	C	IC903
