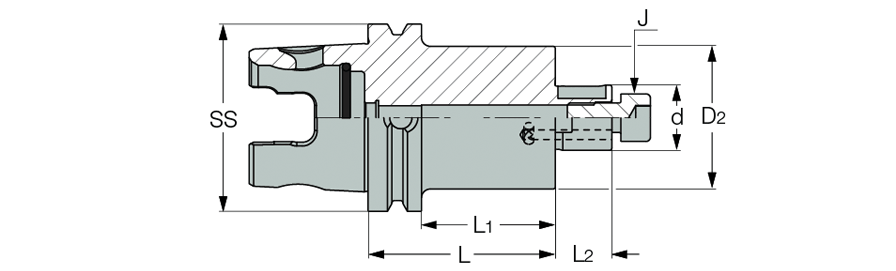

IM63 XMZ-SEM-C :  Shell endmill holder with coolant holes and ISO 26622-1 XMZ tapered shank for Mazak Integrex machines.


RUNOUT (EXT) 0.005MM (.0002 HARDNESS 45 SURFACE FINISH N5 COOLANT
  Designation
SS
d
D2
L
L1
L2
J
KeyHex key size
  IM63 XMZ SEM16X28 C  63  16.00  38.00  28.00  10.0  17.00  M8  6.00
  IM63 XMZ SEM16X63 C  63  16.00  38.00  63.00  45.0  17.00  M8  6.00
  IM63 XMZ SEM16X110 C  63  16.00  38.00  110.00  92.0  17.00  M8  6.00

For shank standard details, click on "More Info"
