ADMT 1505PDR-HS :  HELIMILL inserts with a serrated cutting edge for chip splitting, for roughing applications. Use for long overhang and extended flute cutters with reduced chatter.


Bottom Shouldering Counter boring Countersinking Facing Ramp down Shouldering Side slotting Slanted shoulder. & chamfer. Slotting

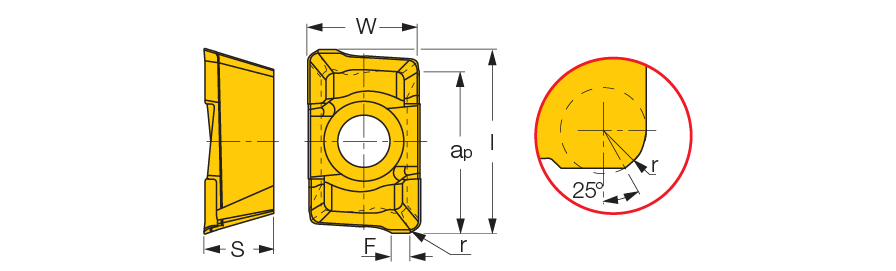

  Designation
W
l
ap
S
r
F		 fz
(min)		 fz
(max)
  Grade
  ADMT 1505PDR-HS  9.60  15.85  14.00  5.64  0.80  2.00  0.10  0.20 IC328 IC928 IC635 IC50M IC250 IC950 IC4050 IC910 IC520M
