HSK A63WH-MULNR/L-MW :  MULTI-WEDGE lock, toolholders with HSK taper shanks for negative 80° rhombic, trigon and square inserts. Can be used on turn-mill machines. (Complies with the ICTM standard).
 Complies with the ICTM and HSK-T standards

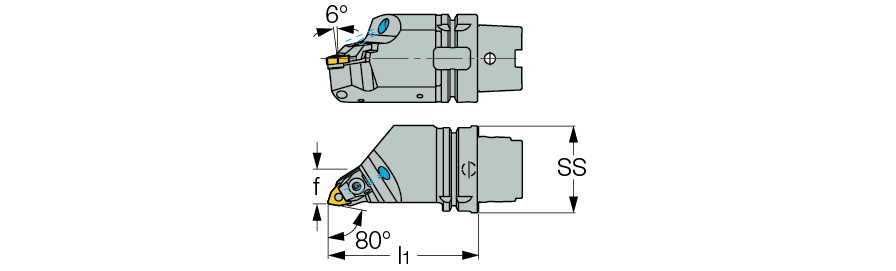

Right-hand shown

Ext. 80° diamond 95° approach Ext. 80° trigon 95 approach Ext. 90° square 75° approach HSK MULNR/L-MW COOLANT
  Designation
SS
l1
f
R/L
Ga°
Gr°
Insert
  HSK A63WH-MULNL-J12MW  63  110.00  25.0  L  -6  -6  W/C/SNMG 1204
  HSK A63WH-MULNR-J12MW  63  110.00  25.0  R  -6  -6  W/C/SNMG 1204

Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately.
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, Click on "More Info".
