EC-A2 (economical-short) :  SOLIDECO - economical type 2 flute, 30° helix center cutting short solid carbide endmills.


Shouldering Slotting Ramp down Helical interpolation Plunging & recessing

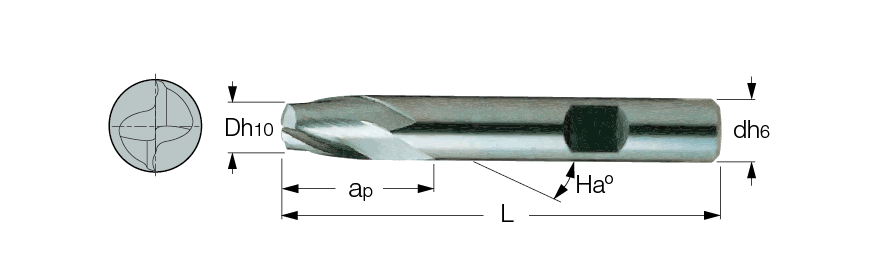

  Designation
D
ap
d
L
Flute
Ha°
Rd°
ShankW-Weldon		 fz
(min)		 fz
(max)
  Grade
  EC-A2 20-20W20E92  20.00  20.00  20.00  92.00  2  30.0  5.0  W  0.05  0.13 IC08 IC900
