ST-SRK :

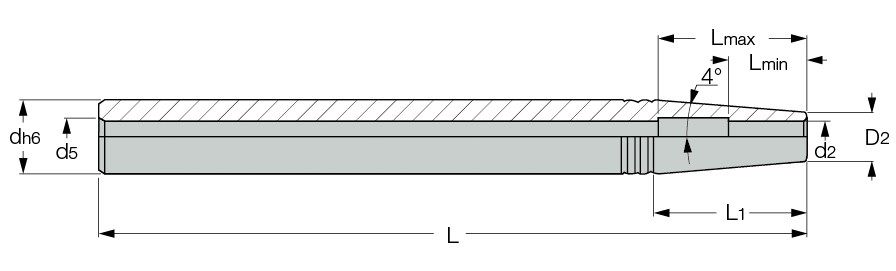

Thermal chuck collets with straight shanks. To be used for carbide tools only.
Designation
d2
d
D2
d5
L
L1
L
min
L
max
Kg
ST 12X160 SRK 3
3.00
12.00
10.00
4.0
160.00
14.3
10.0
-
0.10
ST 16X160 SRK 3
3.00
16.00
10.00
6.0
160.00
43.0
10.0
-
0.20
ST 12X160 SRK 4
4.00
12.00
10.00
4.0
160.00
14.3
12.0
27.0
0.12
ST 16X160 SRK 4
4.00
16.00
10.00
6.0
160.00
43.0
12.0
-
0.20
ST 16X160 SRK 5
5.00
16.00
10.00
6.0
160.00
43.0
15.0
-
0.20
ST 20X200 SRK 5
5.00
20.00
10.00
6.0
200.00
71.5
15.0
-
0.38
ST 16X160 SRK 6
6.00
16.00
11.00
6.0
160.00
35.5
18.0
35.0
0.19
ST 20X200 SRK 6
6.00
20.00
11.00
6.0
200.00
64.5
18.0
40.0
0.30
ST 25X200 SRK 6
6.00
25.00
11.00
8.0
200.00
100.0
18.0
35.0
0.53
ST 20X200 SRK 8
8.00
20.00
14.00
6.0
200.00
43.0
25.0
40.0
0.50
ST 25X200 SRK 8
8.00
25.00
14.00
8.0
200.00
78.6
25.0
40.0
0.58
ST 25X200 SRK10
10.00
25.00
16.00
8.0
200.00
64.3
30.0
50.0
0.61
ST 25X200 SRK12
12.00
25.00
20.00
8.0
200.00
35.7
32.0
52.0
0.63
