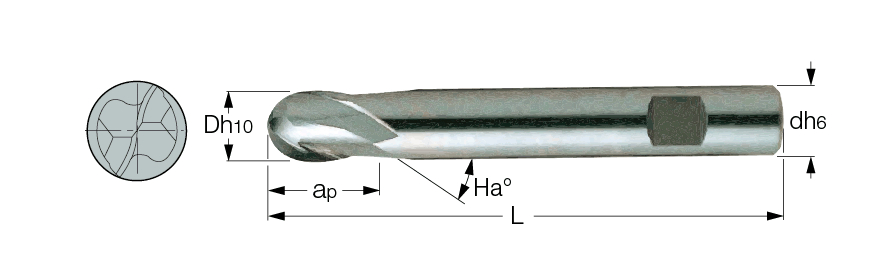

EB-A2 (economical) : SOLIDECO - economical type 2 flute, 30° helix ball nose solid carbide endmills.

Designation	D	d	ap	L	Flute	Ha°	Shank	Grade
EB-A2 02-06C03E38	2.00	3.00	6.00	38.00	2	30.0	C	IC08 IC900
EB-A2 02-04C06E48	2.00	6.00	4.00	48.00	2	30.0	C	IC08 IC900
EB-A2 025-04C06E48	2.50	6.00	4.00	48.00	2	30.0	C	IC08 IC900
EB-A2 03-04C06E48	3.00	6.00	4.00	48.00	2	30.0	C	IC08 IC900
EB-A2 03-07W06E57	3.00	6.00	7.00	57.00	2	30.0	W	IC08 IC900
EB-A2 04-06C06E50	4.00	6.00	6.00	50.00	2	30.0	C	IC08 IC900
EB-A2 04-08W06E57	4.00	6.00	8.00	57.00	2	30.0	W	IC08 IC900
EB-A2 05-07C06E51	5.00	6.00	7.00	51.00	2	30.0	C	IC08
EB-A2 05-10W06E57	5.00	6.00	10.00	57.00	2	30.0	W	IC08 IC900
EB-A2 06-07C06E51	6.00	6.00	7.00	51.00	2	30.0	C	IC08 IC900
EB-A2 06-10W06E57	6.00	6.00	10.00	57.00	2	30.0	W	IC08 IC900
EB-A2 08-09C08E59	8.00	8.00	9.00	59.00	2	30.0	C	IC08 IC900
EB-A2 08-16W08E63	8.00	8.00	16.00	63.00	2	30.0	W	IC08 IC900
EB-A2 10-10C10E60	10.00	10.00	10.00	60.00	2	30.0	C	IC08 IC900
EB-A2 10-19W10E72	10.00	10.00	19.00	72.00	2	30.0	W	IC08 IC900
EB-A2 12-14C12E71	12.00	12.00	14.00	71.00	2	30.0	C	IC08 IC900
EB-A2 12-22W12E83	12.00	12.00	22.00	83.00	2	30.0	W	IC08 IC900
EB-A2 14-14C14E71	14.00	14.00	14.00	71.00	2	30.0	C	IC08 IC900
EB-A2 16-16C16E76	16.00	16.00	16.00	76.00	2	30.0	C	IC08 IC900
EB-A2 16-26W16E92	16.00	16.00	26.00	92.00	2	30.0	W	IC08 IC900
EB-A2 18-18C18E76	18.00	18.00	18.00	76.00	2	30.0	C	IC08 IC900
EB-A2 18-26W18E92	18.00	18.00	26.00	92.00	2	30.0	W	IC08 IC900
EB-A2 20-20C20E82	20.00	20.00	20.00	82.00	2	30.0	C	IC08 IC900
EB-A2 20-32W20E104	20.00	20.00	32.00	104.00	2	30.0	W	IC08 IC900
