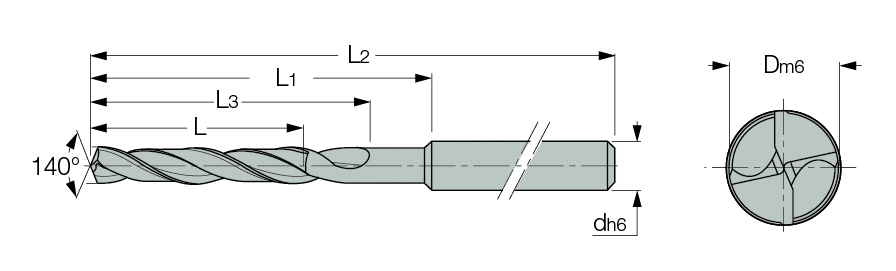

SCD-AP6 (6xD) :
Solid carbide drills without coolant holes. Drilling depth 6xD (DIN 6537).
Designation
D
d
L
L3
L1
L2
Th
Grade
SCD 008-004-030 AP6
0.80
3.00
4.8
6.4
10.7
46.0
-
IC908
SCD 009-005-030 AP6
0.90
3.00
5.4
7.2
11.5
46.0
-
IC908
SCD 010-006-030 AP6
1.00
3.00
6.0
8.0
12.2
46.0
-
IC908
SCD 011-006-030 AP6
1.10
3.00
6.6
8.8
13.0
46.0
M1.4
IC908
SCD 012-007-030 AP6
1.20
3.00
7.2
9.6
13.7
46.0
-
IC908
SCD 013-007-030 AP6
1.30
3.00
7.8
10.4
14.5
46.0
-
IC908
SCD 014-008-030 AP6
1.40
3.00
8.4
11.2
15.2
46.0
-
IC908
SCD 015-009-030 AP6
1.50
3.00
9.0
12.0
16.0
46.0
-
IC908
SCD 016-009-030 AP6
1.60
3.00
9.6
12.8
16.7
46.0
M2
IC908
SCD 017-010-030 AP6
1.70
3.00
10.2
13.6
17.5
60.0
-
IC908
SCD 018-010-030 AP6
1.80
3.00
10.8
14.4
18.2
60.0
-
IC908
SCD 019-011-030 AP6
1.90
3.00
11.4
15.2
18.9
60.0
-
IC908
SCD 020-012-030 AP6
2.00
3.00
12.0
16.0
19.7
60.0
-
IC908
SCD 021-012-030 AP6
2.10
3.00
12.6
16.8
20.4
60.0
-
IC908
SCD 022-013-030 AP6
2.20
3.00
13.2
17.6
21.1
60.0
-
IC908
SCD 023-013-030 AP6
2.30
3.00
13.8
18.4
21.8
60.0
-
IC908
SCD 024-014-030 AP6
2.40
3.00
14.4
19.2
22.5
60.0
-
IC908
SCD 025-015-030 AP6
2.50
3.00
15.0
20.0
23.2
60.0
M3
IC908
SCD 026-015-030 AP6
2.60
3.00
15.6
20.8
23.9
60.0
-
IC908
SCD 027-016-030 AP6
2.70
3.00
16.2
21.6
24.5
60.0
-
IC908
SCD 028-016-030 AP6
2.80
3.00
16.8
22.4
25.2
60.0
-
IC908
SCD 029-017-030 AP6
2.90
3.00
17.4
23.2
25.7
60.0
M3.5
IC908
