IM63 XMZ-ASHR/L-2 :  Twin square shank tool adapters with ISO 26622-1 XMZ tapered shank for Mazak Integrex machines.

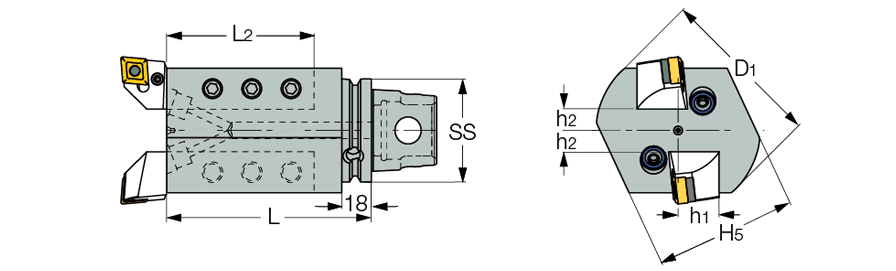

 Left-hand shown

HARDNESS 45 SURFACE FINISH N5 COOLANT
  Designation
SS
h1
H5
D1
h2
L
L2
R/L
  IM63 XMZ ASHL 20-2  63  20.0  71.00  80.0  10.0  85.00  60.00  L
  IM63 XMZ ASHR 20-2  63  20.0  71.00  80.0  10.0  85.00  60.00  R
  IM63 XMZ ASHL 25-2  63  25.0  87.00  100.0  13.0  85.00  60.00  L
  IM63 XMZ ASHR 25-2  63  25.0  87.00  100.0  13.0  85.00  60.00  R

For shank standard details, click on "More Info"
