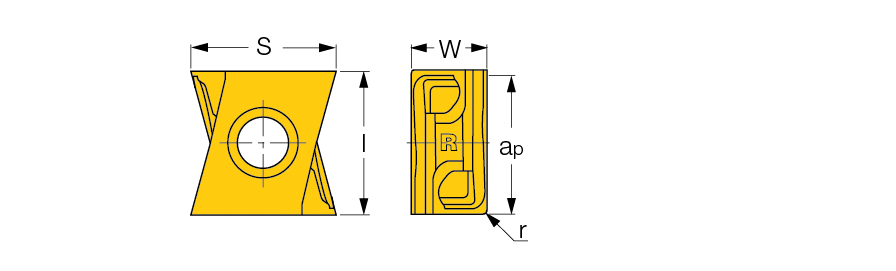

LNHT 1106 PN-R HT :  TANGMILL - Tangentially clamped inserts, with 4 straight right-hand cutting edges.


  Shouldering
  Designation
W
l
S
r
apap max=10 mm for cast iron applications (for each pass), ap max=8 mm for steel applications
R/L		 fz
(min)		 fz
(max)
  Grade
  LNHT 1106PN-R HT  5.97  11.16  11.00  0.80  10.00  R  0.15  0.25 IC328 IC928 IC908 IC910

For mismatch as a function of cutting diameter, Click on "More Info"
