DGR/L-P :  Very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used mainly on soft materials and thin parts at low feed rates.


Parting

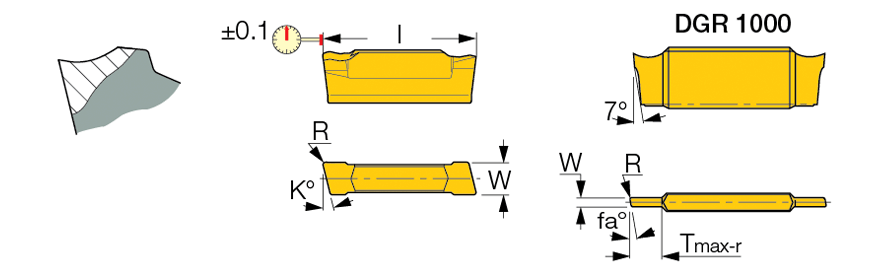

  Designation
W
R
l
Tmax-r
fa°		 fg
(min)		 fg
(max)
  Grade
  DGR 1000P-15D  1.00  0.05  20.00  3.00  15.0  0.02  0.03 IC508
  DGR 1000P-6D  1.00  0.05  20.00  3.00  6.0  0.02  0.04 IC508
  DGR 1500P-15D  1.50  0.05  20.00  18.00  15.0  0.02  0.04 IC508
  DGR 1500P-6D  1.50  0.05  20.00  18.00  6.0  0.02  0.05 IC508
  DGR 2000P-15D  2.00  0.05  20.00  18.00  15.0  0.02  0.05 IC508
  DGR 2000P-6D  2.00  0.05  20.00  18.00  6.0  0.02  0.07 IC508
