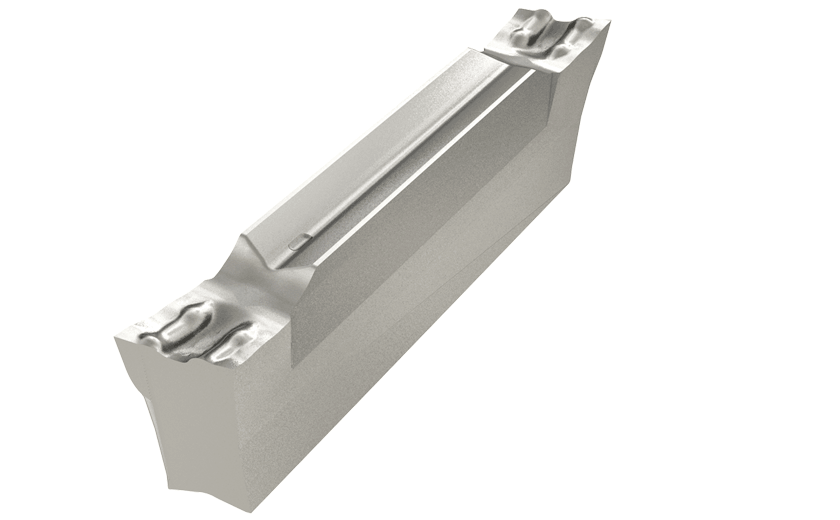

DGR/L-Z/ZS :  A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The tight chipformer ensures short, deformed chips.


Parting
  Designation
W
R		 l
Ref.
Tmax-r
fa°		 fg
(min)		 fg
(max)
  Grade
  DGR 2000ZS-15D  2.00  0.02  20.4  18.00  15.0  0.03  0.07 IC908
  DGR 2000ZS-6D  2.00  0.02  20.4  18.00  6.0  0.03  0.08 IC908
  DGR 2002Z-15D  2.00  0.20  20.4  18.00  15.0  0.03  0.10 IC908
  DGR 2002Z-6D  2.00  0.20  20.9  18.00  6.0  0.03  0.10 IC908
  DGR 3000ZS-15D  3.00  0.02  20.4  18.00  15.0  0.03  0.10 IC908
  DGR 3000ZS-6D  3.00  0.02  20.4  18.00  6.0  0.03  0.12 IC908
  DGR 3002Z-6D  3.00  0.20  20.9  18.00  6.0  0.03  0.14 IC908
