MM EFS :  FINISHRED, combination of roughing and finishing interchangeable solid carbide endmill heads. Part of the MULTI-MASTER system.


Shouldering Slotting Ramp down Helical interpolation

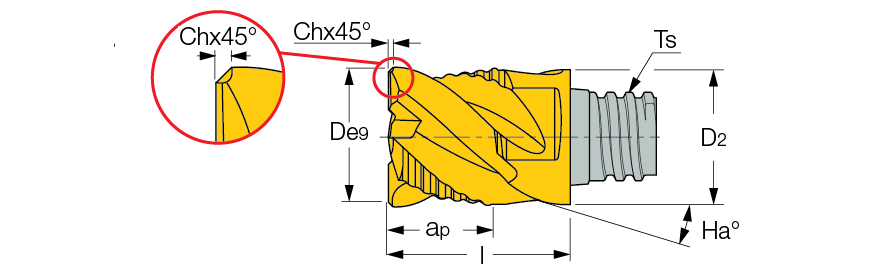

  Designation
D
Flute
ap
Ch
Ts
D2
l
Ha°		 fz
(min)		 fz
(max)
  Grade
  MM EFS120B09-4T08  12.00  4  9.00  0.40  T08  11.70  16.50  45.0  0.04  0.10 IC908
  MM EFS.500B37-4T08  12.70  4  9.40  0.40  T08  12.40  16.50  45.0  0.04  0.00 IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
