MM EFS :  FINISHRED, combination of roughing and finishing interchangeable solid carbide endmill heads. Part of the MULTI-MASTER system.


Shouldering Slotting Ramp down Helical interpolation

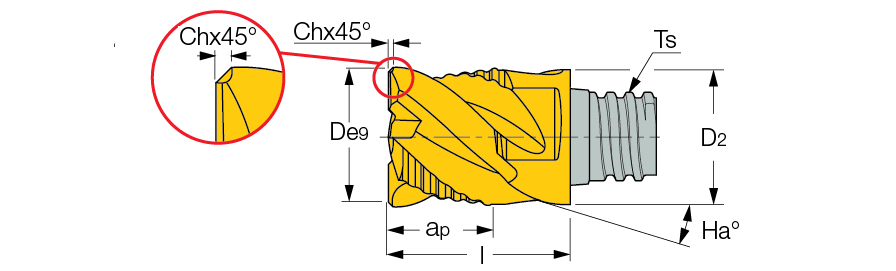

  Designation
D
Flute
ap
Ch
Ts
D2
l
Ha°		 fz
(min)		 fz
(max)
  Grade
  MM EFS.312B20-4T05  .312  4  .200  .012  T05  .300  .393  45.0  .0010  .0030 IC908
  MM EFS.375B27-4T06  .375  4  .275  .012  T06  .360  .512  45.0  .0010  .0040 IC908
  MM EFS.500B37-4T08  .500  4  .370  .015  T08  .488  .650  45.0  .0016  .0000 IC908
  MM EFS.625B47-4T10  .625  4  .470  4024  T10  .600  .800  45.0  .0020  .0040 IC908
  MM EFS.750B62-4T12  .750  4  .620  .024  T12  .720  1.004  45.0  .0020  .0040 IC908
  MM EFS200B15-4T12  .787  4  .591  .024  T12  .720  1.004  45.0  .0020  .0043 IC908
  MM EFS1.00B86-4T15  1.000  4  .860  .024  T15  .941  1.457  45.0  .0000  .0000 IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
