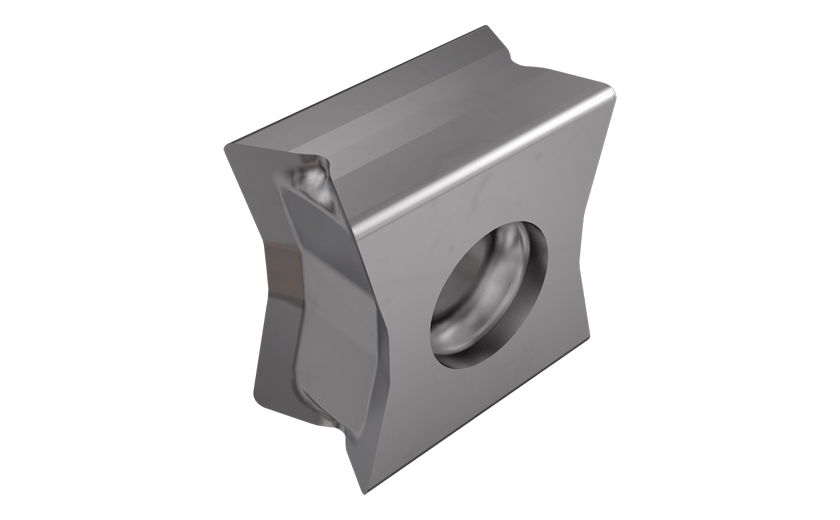

LNAR 1106 :  TANGMILL - Tangentially clamped inserts with positive polished rake. Recommended for machining high silicon, cast aluminum, titanium, nickel-based alloys and magnesium.


Chamfering & bottom deburring   Shouldering Side slotting Slotting

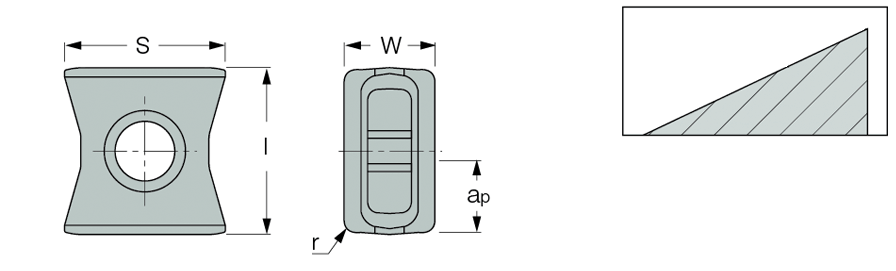

  Designation
W
l
S
r
apD.O.C. when the insert is on the cutter.		 fz
(min)		 fz
(max)
  Grade
  LNAR 1106 PN-N  6.00  11.16  10.72  0.50  5.00  0.15  0.20 IC907
  LNAR 1106 PN-N-P  6.00  11.16  10.72  0.50  5.00  0.15  0.20 IC07

Polished rake and sharp cutting edge
Recommended for machining high silicon and cast aluminum, titanium and magnesium
4 R.H. and 4 L.H. cutting edges
