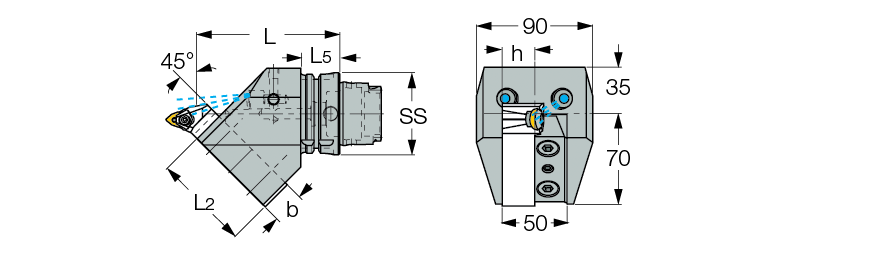

HSK A63WH-ASHN-45 :  Square shank tool adapters with HSK exchangeable shanks for 45° mounting on turn-mill machines (right-or-left hand tools can be used).
 Rigth-hand shown

COOLANT
  Designation
SS
L
L2
h
b
R/L
  HSK A63WH-ASHN-25-45  63  110.00  72.00  25.0  25.0  R/L

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
For using left-hand toolholder, the position of clamping spacer must be changed.
For shank dimensions, click on "More Info".
